Specification:
For Gap Inspection
Type: Taper Welding Gauge
Material: stainless steel
Color: silver
Measuring range: 0-15mm
Measurements is possible in either inch and metric.
All sizes and numerals are etched into the surface for clarity and easier reading.
High strength and hardness.
Durable in use.
Package included:
1 x Taper Welding Gauge
13pcs Weld Gage Set Bridgecam Fillet Hilo Gauge Welding Inspection tools
Specification:
1. WG-501 V-WAC Gage
2. WG-211 Fillet Welding Gauge
3. WG-205 WTPS Gage
4. WG-208 Bridge Cam
5. WG-601 HI LO welding gauge
6. 150mm Scale
7. Telescoping Mirror

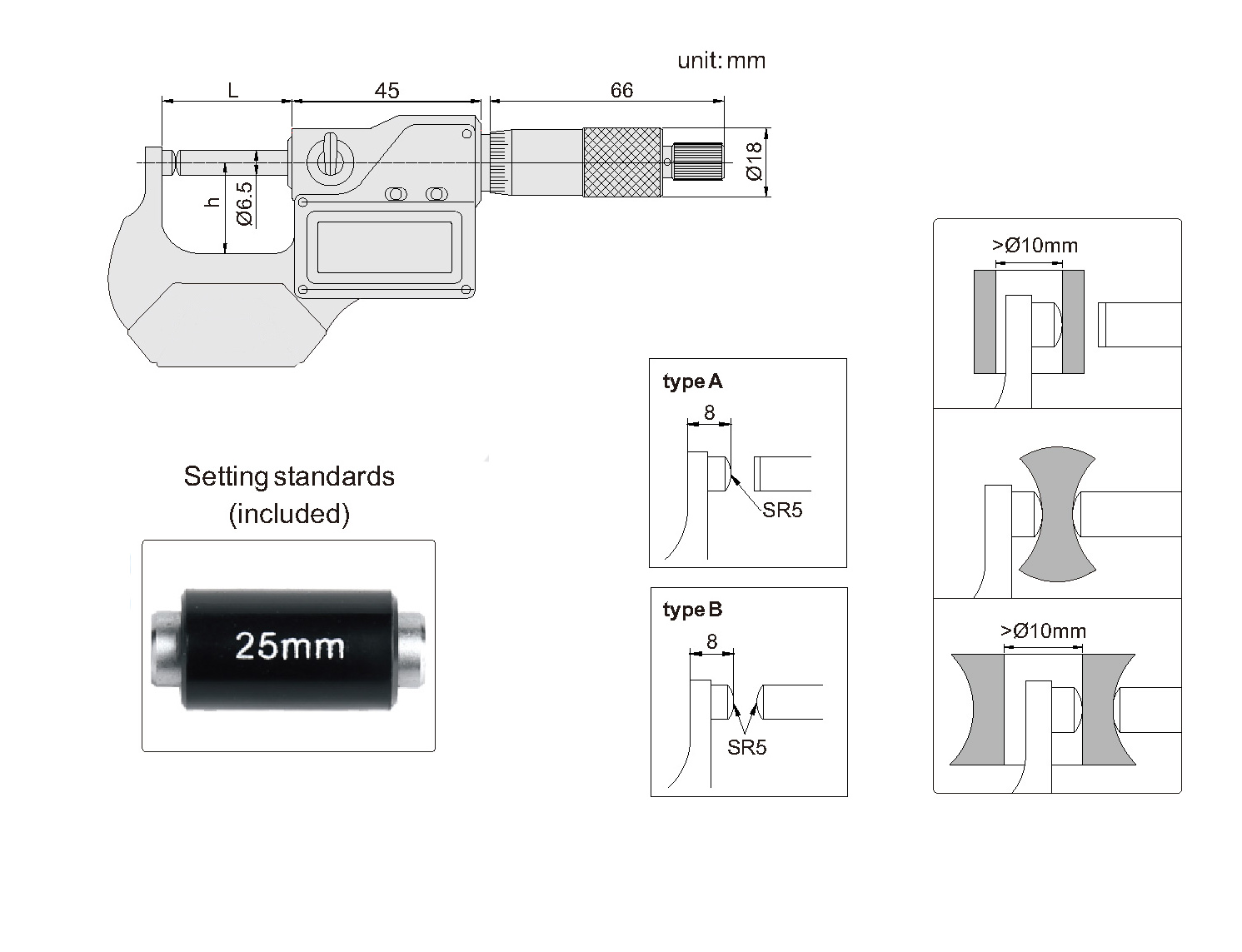

8. DM-01 Micrometer 0-25mm
9. WG-602 Hi-Lo single purpose Gage
10.WG-507 Skew-T Fillet Weld
11.WG-502 AWS Welding Gauge
12.WG-201 Weld Seam Gauge
13.WG-402 Universal Welding Gauge
Pakced with Alu Case for Overseas customers
Features:
Covers main welding gauge in one set
Stainless steel.
With Alu Case for easy carry.
WG-401 HJC40 Universal welding gauge
WG-403 HJC40B welding gauge
WG-208 Bridge cam welding gauge
WG-221 Fillet welding gauge (metric)
WG-211 Fillet welding gauge(Metric and inch)
WG-503 Pipe Pit Gauge
WG-505 Sector welding gauge
WG-601 HI-lo welding gauge
WG-602 Single purpose hi-lo welding gauge
WG-502 automatic weld size welding gauge
WG-501 V-Wac Welding gaue
WG-504 Taper gauge 0-15mm
WG-514 Taper gauge 15-30mm
WG-524 Taper gauge 30-45mm
WG-507 Skew-T Fillet Welding Gauge
Features:
Mini size but wide range.
Measures 8 size fillets
Each welder can carry a set for pre-inspection
With Chain to connect two pieces.
Specification:
* Made of Stailness Steel
* Thickness of the fillet weld: 4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm
* Fillet Weld Size: 4mm,6mm,7.5mm,10mm,12mm,14mm,16mm,18mm
* Accuracy: ±0.5mm
* Weight: 20G
WG-100B B
Features:
Easy to read the data
More accurate than mechnical one
Angle of preparations 60, 70, 80 & 90 degree.
Fillet weld leg throat size,
Butt weld reinforcement
Function:
- MM: inch/ metric conversion
- ON/OFF: power on and power off
- ZERO: zero setting
- Power: 1.5V
Specification:
Range: 0-20mm
Resolution: 0.01mm
Specification:
Usage: Welding Inspection
Type: Seam Control
Angle: 4 Types60 70 80 90 degree angle measure
Function:
beam crown height inspection
Fillet weld throat size inspection
Specification
colour:Silver
material:steel
size:Measuring range: 0-20mm
Resolution: 0.02mm
Measurement accuracy: 0.02mm
Product size: 10*6cm
Package Contents:
1 x Welding Gauge Ruler
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Specifications:
* Mini size
* Precision ground surface
* Range is 0 to 1/2" in 1/64 & 0.020 increments.
* Pocket size - Measures 8 size fillets.
* Checks leg length, throat size, plus allowable convexity.
* All increments permanently engraved.
* Eash welder cam carry a set for pre-inspection.
* Handy key chain holds set together.
* Arm can be locked in place at any dimension.
* Has handy formulas on front & decimal equivalents on back.
* Highly polished surface.
Features:
Function: drill hole and taper measurement.
Type: hand tools, combination.
Application: wood working tool.
Material: Stainless steel.
Specifications:
Material: Stainless Steel
Color: silver
Size: about 80mm Length
Thickness: About 1.2mm
Measuring Range: 1-29mm
Package Included:
4 PCs x Taper Gauge
8 Piece Fillet Weld Gauge For Large Fillet Leg
Function:
Check Fillet Leg & Throat Size
2 1/8 Inches to 3 Inches Large size, 1/8 Inch Increments
The 8 leaves joint together with screw, can be take apart easily and measure different size
Features:
Made of high quality stainless steel.
Highly ground surface
Well lapped
Precision manufactured by machine.
Specification:
Adjustable Fillet Weld Gauge Measures weld throat thickness
adjustable fillet weld gauge used an offset arm which slides at a 45º angle to make fillet weld length measurement. Simply adjust the arm until it touches the toe of the vertical leg. The gage is calibrated to 32nds. Four screws hold the offset arm in position for future adjustments.
Function:
Measures any fillet weld from 1/8" to 1" to 1/32"
used an offset arm which slides at a 45º angle to make fillet weld length measurement
Features:
Stainless Steel
Measure the special fillet
Small in size
Size: 2-1/4 x 3"
Four screws hold the offset arm
What is the AWS gauge used for?
- Check Reinforcement of Butt Weld
- Check The Throat Of Fillet Weld
- Check Leg SizeOf Fillet Weld
What's new for ROKTOOLS gauge?
- OEM welcomed, can mark the customers logo
- Fast delivery
- Highly ground surce, no burr, no scratch
- Mateiral: Hardened Stainless Steel
- Scale: laser mark
- Packed in pouch
- Weight: 71g
- With Red cap locking screw, can stop and fix the scale at any position.
- Low cost but accuracy
Material: metal
Package Contents:
1*Conical Taper Gauge
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
Order No | Range | Length | Resolution |
WG-50421 | 1-6.5mm | 50mm | 0.1mm |
WG-50422 | 3-15mm | 122mm | 0.1mm |
WG-50423 | 15-30mm | 165mm | 0.1mm |
WG-50424 | 30-45mm | 165mm | 0.1mm |
eatures:
- Angle of preparation, 0º to 60º
- Excess weld metal (capping size)
- Depth of undercut
- Depth of pitting
- Fillet weld throat size
- Fillet weld length
- Misalignment (High-Low)
- Stainless Steel
- High polished surface
- Laser carved scale
- Packed synthetic leather bag for the convenience of storage and carrying
- NDT instruments
Specification:
- Constituent Part: Main scale ; Slider ; Multifunction Gage
- Measuring range (Please refer to the instruction manual for specific use):
- Undercut / pitting depth : 0-1'' & 0-25 mm
- Seam reinforcement : 0-1'' & 0-25 mm
- Outside Misalignment: 0-1'' & 0-25 mm
- Fillet leg length: 0-1'' & 0-25 mm
- Fillet throat size: 0-3/4'' & 0-20mm
Features
- Measurement plate thickness
- Measurement the height of butt weld bead
- Measurement the fillet weld bead height
- Measurement weldment groove angle
- Measurement weldment gap
- Check leg length
- Checks All Pipe Schedule
- Check Throat Dimensions
- Made of stainless steel
- With locking screw
- Easy to take
- Made of Stainless Steel
- Highly ground surface
- With moveable scale
- With Chain
Specification:
Weight: 0.1KG
Pipe Pit Gauge With Handy Formulas 0 to 1/2 identify the condition of a pipe Welding inspection Tools
The gauge is placed horizontally on the surface of the pipe and the stylus is positioned into the base of the corrosion pit.Function:
-For NDT inspector related to any pipe weld
-Serve as a constant guide for judging the condition of pipe, The gauge is placed horizontally on the surface of the pipe and the stylus is positioned into the base of the corrosion pit.
-Useful formulas, tables, and data giving O.D
Specification:
Range is 0 to 1/2" in 1/64" & .010 Increments.
Made of stainless steel
Weight: 0..2KG
Vest-pocket size
Packed with pouch
Imperial units
Specification:
Measuring range:
Undercut depth:0-2mm
Pitting depth:0-2mm
Crown height/Reinforcement:0-2mm
Material:Stainless steel
Fillet Weld Gauge Convex and Concave Fillet Leg Throat Size MG-11
check for fillet size and concavity
Checks Fillet Leg & Throat Size
Features:
- With deburred edges
- Knurled nut hols set 7 leves together
- Convex and Concave
- Laser marked scale
- OEM is welcomed
- One end marked in inch, the other end marked in Metric.
- Come in a pack of seven gauges
Main Function:
MEASURES INTERNAL ALIGNMENT Of pipe after fit-up/ alignment, cuts radiographic rejects.
Measures internal misalignment of pipe before and after tacking.
Measurements read in standard one side, and metric on the opposite side.
Measure fit- up gap
Measure bevel on end preparation;
Measure the crown height of welds;
Measure fillet weld size;
Features:
- This welding gauge measures internal alignment of pipe after fit-up/alignment.
- Made of high quality steel, this gauge is durable and not easily scratched.
- Gauge surface is clearly marked by laser which is wear-resisting and ensures a clear reading.
- Small size and light weight, it is convenient to carry and easy to use.
- Widely used for welding inspection of boiler, shipbuilding, bridge, pressure vessel and oil pipeline.
Specifications:
Material: Steel
Measuring Range: 0-4mm
Item Size: 15.3*2cm/6*0.8in
Size150*14mm
Weight: 100g
Packed by pouch
Internal misalignment Range: 0-30mm Resolution: 1mm
Fit-up gap: 0.7-4mm Resolution: 0.1mm
Package Includes:
1 xGauge
PouchEnglish manual
