2000Hz Ultrasonic Flaw Detector With Crack Height Measurement

A B Scan
$1,550.00
   Call To Order
Print

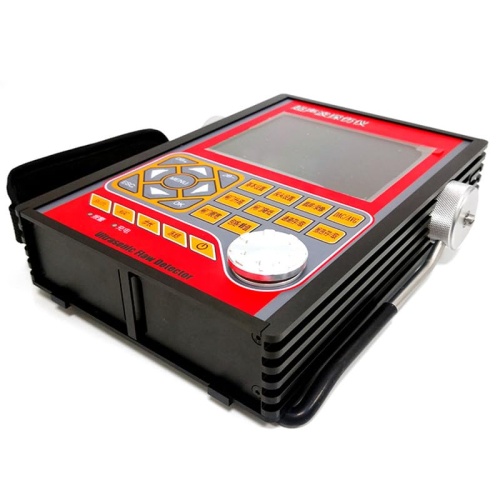

2000Hz Ultrasonic Flaw Detector With Crack Height Measurement

     The instrument can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components

Features:

-Generate PDF flaw reports directly:

-Save screenshots to USB flash drive:

-Repetitive emission frequency up to 2000Hz

-Enhanced display resolution and waveform

-Shift multi-functional button design

-Automatic calibration of probe parameters

-Unlimited video recording and playback function

-Crack Height Measure function

-Envelope, Peak Hold

-A Scan Freeze：Display freeze holds waveform and test distance data.

-B Scan display feature. Intuitively display the defect shape of the workpiece and the detection result is more intuitive.

Specification:

Range0 ~ 15000
Frequency （MHz）0.2～ 20MHZ
Material Velocity （m/s）100 ～ 20000
Pulse Repetition Frequency20 Hz to 2000 Hz
Gain（dB）Gain: 0-110 dB adjustable: 0.1, 1.0, 2.0, 6.0 dB.
Measurement ModeSingle, dual, thru
Display DelayD-Delay:  -20~ 3400μs
Probe Delay/Zero Offset0~99.99μs
Vertical Linearity Error≤1.5%
Case Material

Metal

Standard Package of Ultrasonic Flaw Detector

- Master body 1 pc

- Straight probe 1 pc

- Angle probe 1 pc

- Power charger 1 pc

- BNC Probe cable 1 pc

- U Disk 1 pc

- Shoulder strap 1 pc

- Empty bottle 1 pc for Coupling agent

- User's manual 1 pc

- Test Report 1 pc

- Instrument case 1 pc

  • Availability: In Stock
  • Model: FD-1008
  • Brand: ROKTOOLS
