Heavy Duty Digital Taper Gauge 0.2-10mm Slot Gauge
Stainless Steel, gap gauge
$155.99

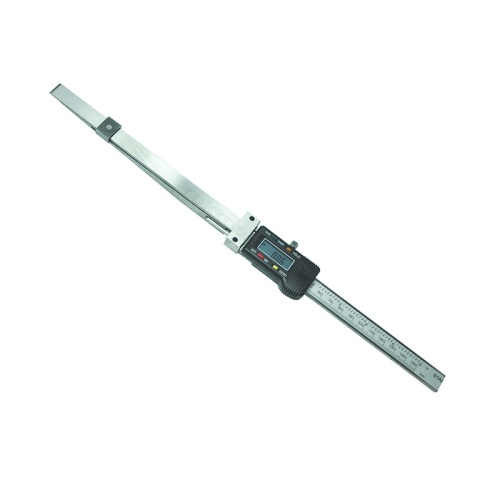

Heavy Duty Digital Taper Gauge 0.2-10mm Slot Gauge
Note: Hold the caliper horizontally when unscrew it, in case the beam drops on the ground and damage it.
The Heavy duty type digital taper gauge is widely used in power station to measure the gap or slot width of turbomachine and other machine. It is also referes to as digital taper slot gauge. More Thicker, more stronger.
Features:
- Heavy duty type, more thicker than 70801 types gauge.
- Highly precision ground surface
- Handened Stainless steel
- Packed in wooden box
Specification:
Order No | Range | Accuracy | Resolution |
TAWG-72301 | 0.2-10mm | /-0.03mm | 0.01mm |
TAWG-72302 | 10-20mm | /-0.03mm | 0.01mm |
TAWG-72303 | 20-30mm | /-0.03mm | 0.01mm |
TAWG-72304 | 30-40mm | /-0.03mm | 0.01mm |
- Availability: In Stock
- Model: TAWG-72301
- Brand: ROKTOOLS
