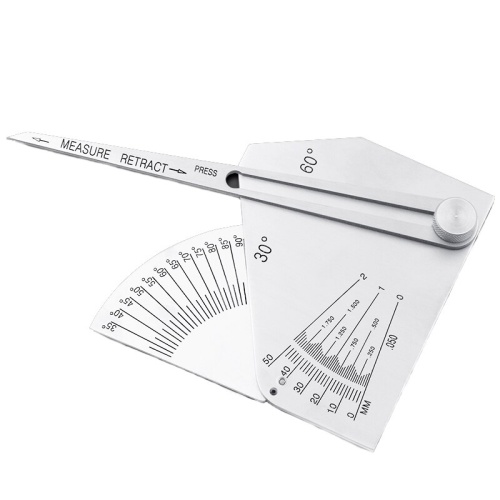

Function:
-Measures Acute and Obtuse Weld Fillet
-Used in skewed members or members at 90 degrees, and it can replace other sets of gauges to measure fillet or groove welds
-Checking Weld Acute Side
-With Calculator The SKEW weld gage also with a fillet weld calculator,a handy compilation of mathematical relationships between leg length, throats, skew angles and inspection -dimensions
-Checking Weld Obtuse Side
Specification:
Metric
1.Angle of the skewed member: 30-90°
2. Theoretical Throat (in Inch): 0-1.2''
3. Leg Size of Fillet (in Inch): 0-1.6''
4. Inspection Dimension (in Inch): 0-1.6''
Inch 1.Angle of the skewed member: 30-90°
2. Theoretical Throat (in Metric): 0-30mm
3. Leg Size of Fillet (in Metric): 0-40mm
4. Inspection Dimension (in Metric): 0-40mm
- Availability: In Stock
- Model: WG-507
- Brand: ROKTOOLS
