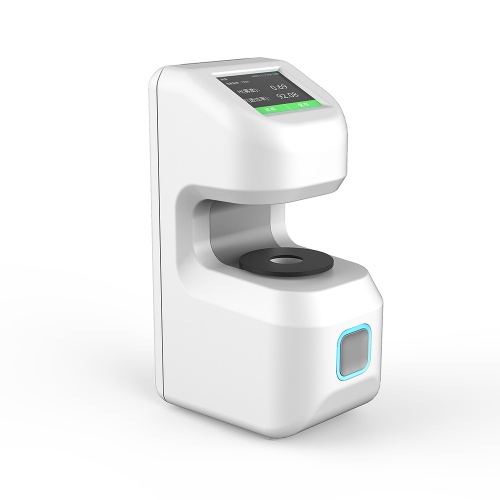

Haze Meter with 21mm Test Apertures ASTM-Haze Transmittance

Resolution: 0.1%
$459.00
Qty:

Haze Meter with 21mm Test Apertures ASTM-Haze Transmittance

Features:

With 2.8' touch screen, compact, Portable

Small size easy to take on the spot to measure the trasmittance

Meet differerent international standard

Specification:

Model

HAZM-92001

HAZM-92002★

HAZM-92003

ASTM-haze/transmittance

ISO- haze/transmittance

Test Apertures

21mm

21mm, 15mm

21mm, 15mm, 12mm

Resolution

0.1%

0.01%

0.01%

Repeatability

0.1

0.05

0.02

Lithium Battery

Weight

1.13kg

1.25kg

1.25kg

Model

HAZM-92001

HAZM-92002

HAZM-92003

Light Source

CIE-A,CIE-C,CIE-D65

CIE-A,CIE-C,CIE-D65

CIE-A,CIE-C,CIE-D65

Standards

ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

Parameter

ASTM-haze/transmittance

ASTM & ISO -haze/transmittance

ASTM & ISO -haze/transmittance

Spectral Response

CIE The spectrum function Y/V(λ)

CIE The spectrum function Y/V(λ)

CIE The spectrum function Y/V(λ)

Geometry

0/d

0/d

0/d

Test Aperture

21mm

21mm, 15mm

21mm, 15mm, 12mm

Test Range

0-100%

0-100%

0-100%

Resolution

0.1%

0.01%

0.01%

Repeatability

0.1

0.05

0.02

Sample Size

Thickness ≤40mm

Thickness ≤40mm

Thickness ≤40mm

Display

2.8 inches touch screen

2.8 inches touch screen

2.8 inches touch screen

Data Storage

Mass Storage

Mass Storage

Mass Storage

Interface

USB

USB

USB

Power

DC 5V/2A

Rechargeable Lithium Battery

Rechargeable Lithium Battery

Working Temperature

5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

5~40℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature

-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

-20 ℃ ~ 45 ℃, relative humidity 80% or below (at 35 ℃), no condensation

Size

133mm x 99mm x 224mm

(length X width X height)

133mm x 99mm x 224mm

(length X width X height)

133mm x 99mm x 224mm

(length X width X height)

Weight

1.13 kg

1.25 kg

1.25 kg

Optional

Test Aperture with custom made size

Test Aperture with custom made size

Test Aperture with custom made size

  • Availability: In Stock
  • Model: HAZM-92001
  • Brand: ROKTOOLS
